Plot minimum-spanning tree of groups with per-variable node colouring

Source: R/plot_cluster_mst.R
plot_group_mst.Rd

Computes the minimum-spanning tree (MST) over groups, where the distance between two groups is the Euclidean distance between their median variable profiles. The MST is built from the full pairwise Euclidean distance matrix (i.e. a fully connected undirected weighted graph), matching the approach used by FlowSOM (BuildMST). The node layout is determined once and shared across all per-variable plots.

Two layout algorithms are supported via layout_algorithm:

  • "kamada-kawai" (default): uses the Kamada-Kawai force-directed algorithm (igraph::layout_with_kk) on the MST graph, matching the FlowSOM visualisation style.

  • "mds": uses classical multidimensional scaling (stats::cmdscale) of the full Euclidean distance matrix.

For each variable, a separate plot is produced in which each group node is filled according to the ECDF-standardised percentile of that group's median value for the variable — the same scaling used by plot_group_heatmap(). The node border and label colour encode group identity and can be overridden via col_clusters.

By default the function returns a named list of ggplot2 objects, one per variable. If n_col or n_row is supplied the plots are combined into a single figure using cowplot::plot_grid, with variable names as labels.

Colour palette

When col_clusters is NULL, group colours are assigned automatically based on palette_group. The "auto" strategy selects a palette by the number of groups:

  • 1–8 groups: Okabe-Ito — colorblind-safe 8-colour palette.

  • 9–12 groups: ColorBrewer Paired — 12 colours pairing light and dark versions of 6 hues.

  • 13–21 groups: Kelly's palette (optional Polychrome package) — 21 colours of maximum perceptual contrast (white excluded). Falls back to hue_pal() with a warning if Polychrome is not installed.

  • 22–31 groups: Glasbey's palette (optional Polychrome package) — 31 algorithmically spaced colours (white excluded). Falls back to hue_pal() with a warning if Polychrome is not installed.

  • > 31 groups: hue_pal() — evenly spaced hues (a warning is issued).

Set palette_group explicitly to override the automatic selection (provided the chosen palette supports at least as many colours as there are groups).

Node fill

By default (node_fill_by = "variable") each variable produces a separate plot in which node fill encodes the ECDF-standardised percentile of that cluster's median — a continuous gradient from low (blue) to high (red) using the palette controlled by palette / col / col_positions.

Set node_fill_by = "cluster" to instead fill nodes by cluster identity using the same discrete palette chosen by palette_group / col_clusters. In this mode the function returns a single ggplot2 object (not a list) because the fill is the same regardless of variable.

Set node_fill_by to the name of any other character or factor column in .data to colour nodes by that column's values (for example a "sex" column, or a coarser "metacluster" that maps each group to a broader category). The column must map each group to a single unique value; if a group maps to multiple values the first is used and a warning is issued. Colours are chosen automatically using palette_group, or can be specified via col_node_fill. Like node_fill_by = "cluster", this mode returns a single ggplot2 object. The column is automatically excluded when vars is NULL so that it is not treated as a numeric variable.

Usage

plot_group_mst(
  .data,
  group,
  vars = NULL,
  layout_algorithm = c("kamada-kawai", "mds"),
  coord_equal = TRUE,
  suppress_axes = NULL,
  col_clusters = NULL,
  col_node_fill = NULL,
  node_fill_by = "variable",
  palette_group = "auto",
  palette = "bipolar",
  col = c("#2166AC", "#F7F7F7", "#B2182B"),
  col_positions = "auto",
  white_range = c(0.4, 0.6),
  na_rm = TRUE,
  n_col = NULL,
  n_row = NULL,
  label_x = 0,
  label_y = 1,
  hjust = -0.5,
  vjust = 1.5,
  font_size = 14,
  thm = cowplot::theme_cowplot(font_size = font_size) + ggplot2::theme(plot.background =
    ggplot2::element_rect(fill = "white", colour = NA), panel.background =
    ggplot2::element_rect(fill = "white", colour = NA)),
  grid = cowplot::background_grid(major = "xy")
)

plot_cluster_mst(
  .data,
  cluster,
  palette_cluster = "auto",
  palette = "bipolar",
  ...
)

Arguments

.data

data.frame. Rows are observations. Must contain a column identifying group membership and columns for variable values.

group

character. Name of the column in .data that identifies group membership.

vars

character vector or NULL. Names of columns in .data to use as variables. If NULL, all columns except group are used. Default is NULL.

layout_algorithm

character. Layout algorithm for positioning nodes. One of "kamada-kawai" (default) or "mds". "kamada-kawai" uses the Kamada-Kawai force-directed algorithm on the MST graph via igraph::layout_with_kk, matching the FlowSOM visualisation style. "mds" uses classical multidimensional scaling of the full distance matrix via stats::cmdscale.

coord_equal

logical. Whether to enforce equal visual scaling on both axes (one unit on the x-axis equals one unit on the y-axis) via ggplot2::coord_equal(). Default is TRUE.

suppress_axes

logical or NULL. Whether to suppress axis text, ticks, lines, and titles. When NULL (default), the value is inherited from coord_equal — axes are suppressed when equal scaling is active.

col_clusters

named character vector or NULL. Per-cluster colours applied to node borders and text labels. Names should match cluster labels. When NULL (default), colours are chosen automatically by number of groups: Okabe-Ito for up to 8, ColorBrewer Paired for up to 12, Kelly's palette (requires Polychrome) for up to 21, Glasbey's palette (requires Polychrome) for up to 31, and hue_pal() for larger numbers.

col_node_fill

named character vector or NULL. Per-value colours for node fill when node_fill_by is set to a column name (not "variable" or "cluster"). Names should match the unique values in the node_fill_by column. When NULL (default), colours are chosen automatically using palette_group. Ignored when node_fill_by is "variable" or "cluster".

node_fill_by

character. Controls what the node fill encodes. One of "variable" (default), "cluster", or the name of a character or factor column in .data to use as a discrete grouping variable for node fill. See the Node fill section of Details.

palette_group

character. Palette used for automatic colour assignment when col_clusters is NULL. One of "auto" (default), "okabe_ito", "paired", "kelly", "glasbey", or "hue_pal". See the Colour palette section of Details.

palette

character or NULL. Named colour palette for the continuous node fill scale. Forwarded to plot_group_mst(). Default is "bipolar".

col

character vector. Colours used to fill nodes, ordered from low to high values. Default is c("#2166AC", "#F7F7F7", "#B2182B") (blue, white, red). Any number of colours (>= 2) is accepted. Ignored when palette is not NULL.

col_positions

numeric vector or "auto". Positions (in [0, 1]) at which each colour in col is placed on the fill scale. Must be the same length as col, sorted in ascending order, with the first value 0 and the last value 1. When "auto" (default) and col has exactly three colours, the middle colour is stretched over white_range. In all other "auto" cases the colours are evenly spaced from 0 to 1. Ignored when palette is not NULL.

white_range

numeric vector of length 2. The range of positions (on a 0-1 scale) over which the middle colour is stretched. Only used when col has exactly three colours and col_positions = "auto". Also applied to diverging palette presets. Default is c(0.4, 0.6).

na_rm

logical. Whether to remove NA values before computing per-cluster medians and ECDF percentiles. When TRUE (default), NA values are removed and a message is issued showing how many were removed per variable. When FALSE, NA values are passed through: node fill values will be NA (rendered as grey by default) where a variable has no non-missing observations in a cluster.

n_col

integer or NULL. Number of columns passed to cowplot::plot_grid. If supplied (or if n_row is supplied) a single combined figure is returned instead of a list. Default is NULL.

n_row

integer or NULL. Number of rows passed to cowplot::plot_grid. If supplied (or if n_col is supplied) a single combined figure is returned instead of a list. Default is NULL.

label_x

numeric. x position of the plot labels within each panel in grid mode. Passed to cowplot::plot_grid. Default is 0.

label_y

numeric. y position of the plot labels within each panel in grid mode. Passed to cowplot::plot_grid. Default is 1.

hjust

numeric. Horizontal justification of the plot labels in grid mode. Passed to cowplot::plot_grid. Default is -0.5.

vjust

numeric. Vertical justification of the plot labels in grid mode. Passed to cowplot::plot_grid. Default is 1.5.

font_size

numeric. Font size passed to cowplot::theme_cowplot. Default is 14.

thm

ggplot2 theme object or NULL. Default is cowplot::theme_cowplot(font_size = font_size) with a white plot background. Set to NULL to apply no theme adjustment.

grid

ggplot2 panel grid or NULL. Default is cowplot::background_grid(major = "xy"). Set to NULL for no grid.

cluster

character. Name of the column in .data that identifies group membership. Alias for the group parameter.

palette_cluster

character. Alias for palette_group in plot_group_mst(). See the Colour palette section of Details.

...

Additional arguments passed to plot_group_mst().

Value

A named list of ggplot2 objects (one per variable) when neither n_col nor n_row is specified. A cowplot::plot_grid figure when n_col or n_row is specified.

Examples

set.seed(1)
.data <- data.frame(
  group = rep(paste0("C", 1:3), each = 20),
  var1 = c(rnorm(20, 2), rnorm(20, 0), rnorm(20, -2)),
  var2 = c(rnorm(20, -1), rnorm(20, 1), rnorm(20, 0))
)
# Default: Kamada-Kawai layout, returns a named list of plots
plot_list <- plot_group_mst(.data, group = "group")

# MDS layout

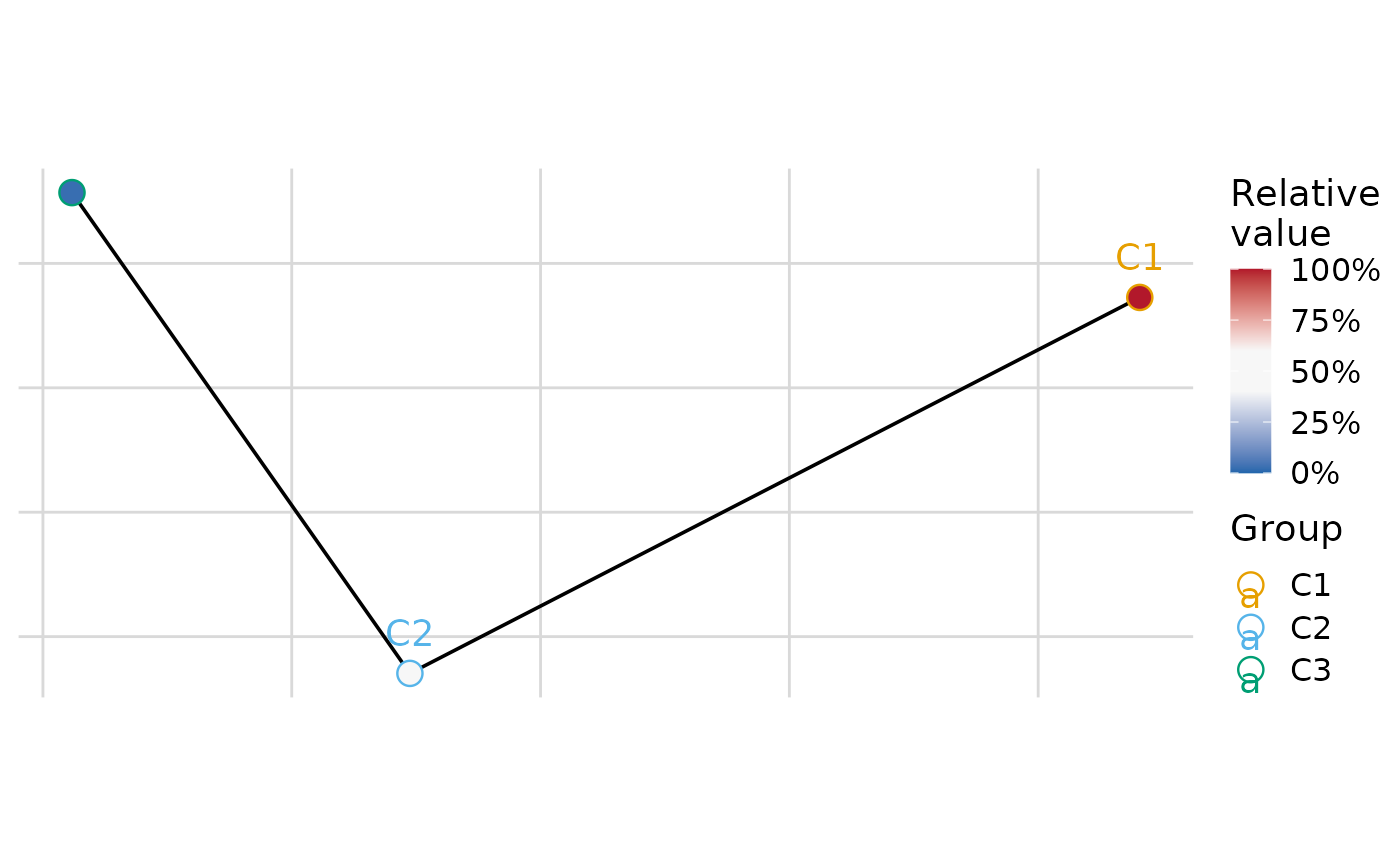

plot_group_mst(.data, group = "group", layout_algorithm = "mds")
#> $var1

#>
#> $var2

#>

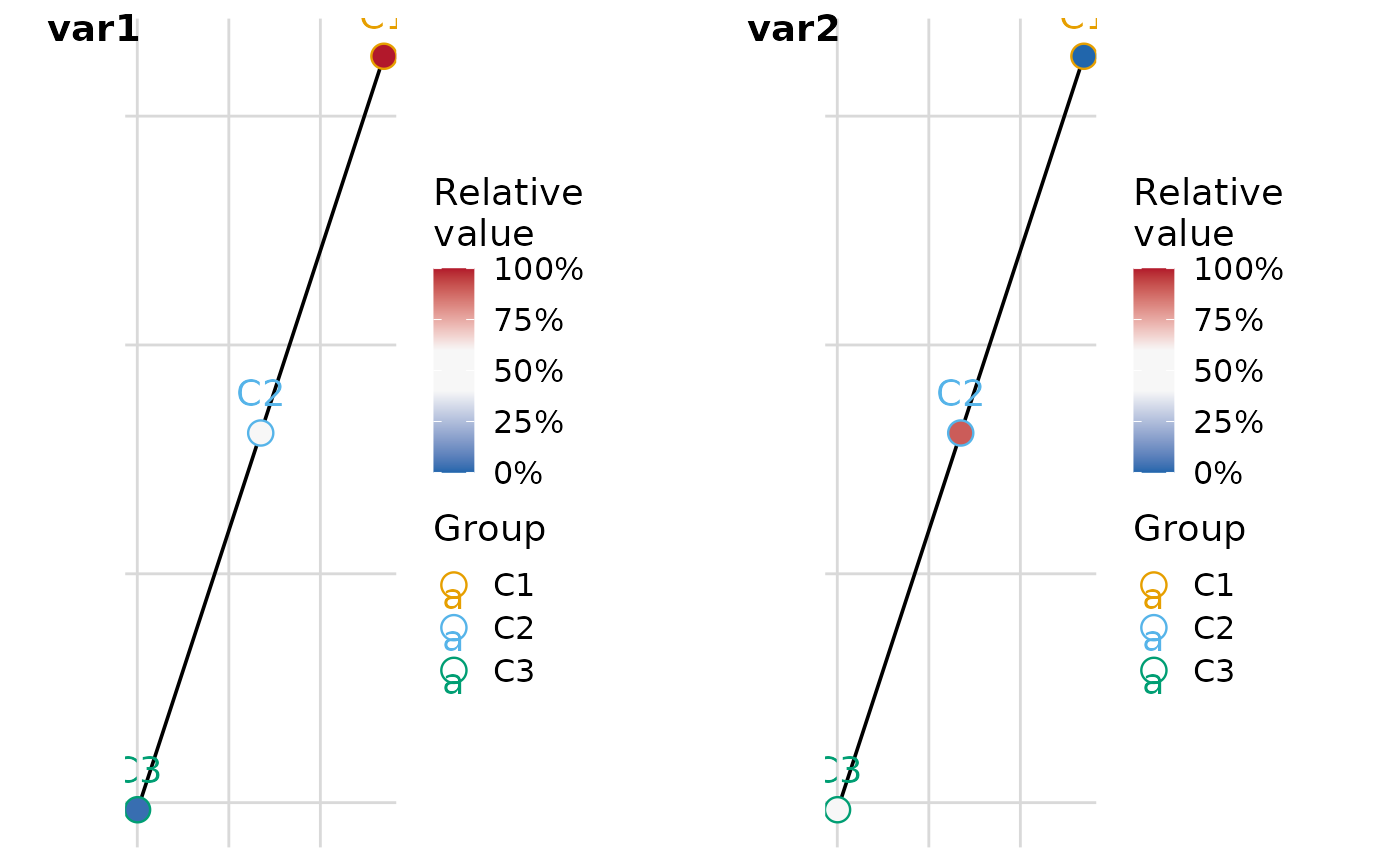

# Combined grid with 2 columns
plot_group_mst(.data, group = "group", n_col = 2)
